10 ton pallet truck

A 10 ton pallet truck is a great alternative for a conventional diesel forklift. In practice, many companies use large forklifts for tasks that could be done by a PTB pallet truck or stacker. The 10 ton pallet truck is driven by one or more electromotors and powered by a battery.

The PTB heavy duty pallet truck compared to a conventional forklift is:

Safer because of hidden wheels and the automatically adjusted speeds in the corners and more
Fully-electric with one or more maintenance free electromotors
More affordable than a forklift with a similar capacity
A safer transportation of cargo, because of the customized load carrier



10 ton pallet trucks for loading shipping containers
10 ton pallet trucks for loading shipping containers

10 ton in a level position

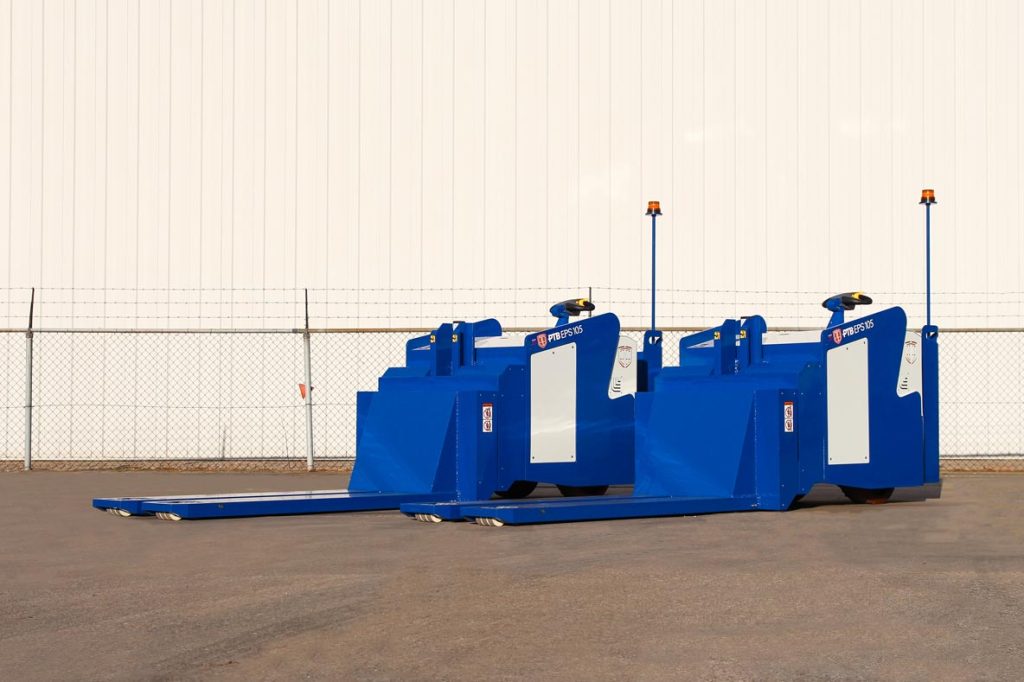

For a customer from Thailand, we have built two versions of the EPS105, which is a pallet truck with a lifting capacity of 10,5 ton. The trucks were designed to carry pallets with 10.500 kg of cargo into a shipping container. The carrying had to be done by driving over a dock leveler that often stands in a 11.5 degree angle. Driving over such a steep slope into a cargo container requires some serious power, yet the truck also had to be relatively small. A regular high capacity forklifttruck would have been too massive for this job. Another requirement was to design a system that keeps the cargo level when driving over the slope.

Fully-electric

A 10 ton pallet truck from PTB offers many advantages:

It is safer and much more compact than a conventional forklifttruck
It is fully-electric with maintenance free AC-motors
We offer a variety of easy-to-use control modes.
We coöperate on the design to create the safest and most efficient truck for your company
Since 1976 we have delivered thousands of custom-made trucks around the world
We are trusted by AGITO Medical, Deutsche Bahn, Hitachi and many more brands



Examples

10 ton pallet truck for moving crates filled with fishing nets
10 ton pallet truck for moving crates full of fishing nets
10 ton pallet truck for lifting large buckets of chemicals
10 ton pallet truck for lifting large buckets of chemicals


Questions? Do not hesitate to contact us

Would you like to contact us about developing a 10 ton pallet truck for your business? You can contact us by telephone or fill out our online form. We will then get back to you as soon as possible.

Request quotation Examples



Standard specifications

  • Lifting capacity: 10.000 kg
  • Drive: fully electric AC-motor(s)
  • Lifting and lowering: electrically operated
  • Driving speed controller: electronically and programmable
  • Braking system: electro magnetic
  • Includes: power steering, key switch, emergency stop, electronic parking brake, horn, MDI-indicator with hour meter, battery indicator.
